CentOS7安装Android SDK
# SDK版本下载
安装Android SDK时，可以提前到官网上查看可用下载的 SDK版本 (opens new window)，版本信息如下截图
[root@localhost androidSdk]# pwd
/usr/local/androidSdk
[root@localhost androidSdk]# wget https://dl.google.com/android/repository/commandlinetools-linux-6858069_latest.zip
--2020-10-23 23:46:26-- https://dl.google.com/android/repository/commandlinetools-linux-6858069_latest.zip
正在解析主机 dl.google.com (dl.google.com)... 203.208.43.97
正在连接 dl.google.com (dl.google.com)|203.208.43.97|:443... 已连接。
已发出 HTTP 请求，正在等待回应... 200 OK
长度：87259900 (83M) [application/zip]
正在保存至: “commandlinetools-linux-6858069_latest.zip”
100%[=========================================================================================================================================================================>] 87,259,900 2.26MB/s 用时 32s
2020-10-23 23:46:59 (2.60 MB/s) - 已保存 “commandlinetools-linux-6858069_latest.zip” [87259900/87259900])
[root@localhost androidSdk]#
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
2
3
4
5
6
7
8
9
10
11
12
13
14
15
- 配置全局环境
首先，出于好奇，我们应该先关心一下解压出了什么内容
[root@localhost androidSdk]# pwd
/usr/local/androidSdk
[root@localhost androidSdk]# ls
commandlinetools-linux-6858069_latest.zip
[root@localhost androidSdk]# unzip commandlinetools-linux-6858069_latest.zip
......此处省略好多解压过程的信息
[root@localhost androidSdk]# ls
cmdline-tools commandlinetools-linux-6858069_latest.zip
[root@localhost androidSdk]# cd cmdline-tools/
[root@localhost cmdline-tools]# ls
bin lib NOTICE.txt source.properties
[root@localhost cmdline-tools]#
1
2
3
4
5
6
7
8
9
10
11
12
13
14
2
3
4
5
6
7
8
9
10
11
12
13
14
通过上述操作日志中可以看出，解压出来的commandlinetools-linux-6858069_latest.zip中就一个cmdline-tools（其实该cmdline-tools内容就是tools中的内容，即该目录下的bin包含sdkmanager工具），目录下包含了bin lib NOTICE.txt source.properties 其次，配置sdkmanager全局变量PATH
export SDK_HOME=/usr/local/androidSdk
export PATH=${SDK_HOME}/cmdline-tools/bin:$PATH # 配置sdkmanager环境
# export PATH=${SDK_HOME}/tools/bin:$PATH # 配置通过cmdline-tools中的sdkmanager下载下来的tools中的sdkmanager
1
2
3
2
3
执行 source /etc/profile 重新加载配置文件后生效
最后，以上环境配置好之后，可以执行下面指令进行检查sdkmanager是否安装成功以及对应的版本信息
[root@localhost ~]# sdkmanager --sdk_root=/usr/local/androidSdk/ --version
3.0
[root@localhost ~]#
1
2
3
4
2
3
4
# sdkmanager的使用
- sdkmanager官方文档 (opens new window)
- 列出已安装和可用的软件包
sdkmanager --sdk_root=/usr/local/androidSdk/ --list
[root@localhost androidSdk]# sdkmanager --sdk_root=/usr/local/androidSdk/ --list
[=======================================] 100% Computing updates...
Available Packages:
Path | Version | Description
------- | ------- | -------
add-ons;addon-google_apis-google-15 | 3 | Google APIs
add-ons;addon-google_apis-google-16 | 4 | Google APIs
add-ons;addon-google_apis-google-17 | 4 | Google APIs
add-ons;addon-google_apis-google-18 | 4 | Google APIs
add-ons;addon-google_apis-google-19 | 20 | Google APIs
add-ons;addon-google_apis-google-21 | 1 | Google APIs
add-ons;addon-google_apis-google-22 | 1 | Google APIs
add-ons;addon-google_apis-google-23 | 1 | Google APIs
add-ons;addon-google_apis-google-24 | 1 | Google APIs
build-tools;19.1.0 | 19.1.0 | Android SDK Build-Tools 19.1
build-tools;20.0.0 | 20.0.0 | Android SDK Build-Tools 20
build-tools;21.1.2 | 21.1.2 | Android SDK Build-Tools 21.1.2
build-tools;22.0.1 | 22.0.1 | Android SDK Build-Tools 22.0.1
build-tools;23.0.1 | 23.0.1 | Android SDK Build-Tools 23.0.1
build-tools;23.0.2 | 23.0.2 | Android SDK Build-Tools 23.0.2
build-tools;23.0.3 | 23.0.3 | Android SDK Build-Tools 23.0.3
build-tools;24.0.0 | 24.0.0 | Android SDK Build-Tools 24
build-tools;24.0.1 | 24.0.1 | Android SDK Build-Tools 24.0.1
build-tools;24.0.2 | 24.0.2 | Android SDK Build-Tools 24.0.2
build-tools;24.0.3 | 24.0.3 | Android SDK Build-Tools 24.0.3
build-tools;25.0.0 | 25.0.0 | Android SDK Build-Tools 25
build-tools;25.0.1 | 25.0.1 | Android SDK Build-Tools 25.0.1
build-tools;25.0.2 | 25.0.2 | Android SDK Build-Tools 25.0.2
build-tools;25.0.3 | 25.0.3 | Android SDK Build-Tools 25.0.3
build-tools;26.0.0 | 26.0.0 | Android SDK Build-Tools 26
build-tools;26.0.1 | 26.0.1 | Android SDK Build-Tools 26.0.1
build-tools;26.0.2 | 26.0.2 | Android SDK Build-Tools 26.0.2
build-tools;26.0.3 | 26.0.3 | Android SDK Build-Tools 26.0.3
build-tools;27.0.0 | 27.0.0 | Android SDK Build-Tools 27
build-tools;27.0.1 | 27.0.1 | Android SDK Build-Tools 27.0.1
build-tools;27.0.2 | 27.0.2 | Android SDK Build-Tools 27.0.2
build-tools;27.0.3 | 27.0.3 | Android SDK Build-Tools 27.0.3
build-tools;28.0.0 | 28.0.0 | Android SDK Build-Tools 28
build-tools;28.0.1 | 28.0.1 | Android SDK Build-Tools 28.0.1
build-tools;28.0.2 | 28.0.2 | Android SDK Build-Tools 28.0.2
build-tools;28.0.3 | 28.0.3 | Android SDK Build-Tools 28.0.3
build-tools;29.0.0 | 29.0.0 | Android SDK Build-Tools 29
build-tools;29.0.1 | 29.0.1 | Android SDK Build-Tools 29.0.1
build-tools;29.0.2 | 29.0.2 | Android SDK Build-Tools 29.0.2
build-tools;29.0.3 | 29.0.3 | Android SDK Build-Tools 29.0.3
build-tools;30.0.0 | 30.0.0 | Android SDK Build-Tools 30
build-tools;30.0.1 | 30.0.1 | Android SDK Build-Tools 30.0.1
build-tools;30.0.2 | 30.0.2 | Android SDK Build-Tools 30.0.2
cmake;3.10.2.4988404 | 3.10.2 | CMake 3.10.2.4988404
cmake;3.6.4111459 | 3.6.4111459 | CMake 3.6.4111459
cmdline-tools;1.0 | 1.0 | Android SDK Command-line Tools
cmdline-tools;2.1 | 2.1 | Android SDK Command-line Tools
cmdline-tools;3.0 | 3.0 | Android SDK Command-line Tools
cmdline-tools;latest | 3.0 | Android SDK Command-line Tools (latest)
emulator | 30.1.5 | Android Emulator
extras;android;m2repository | 47.0.0 | Android Support Repository
extras;google;auto | 1.1 | Android Auto Desktop Head Unit emulator
extras;google;google_play_services | 49 | Google Play services
extras;google;instantapps | 1.9.0 | Google Play Instant Development SDK
extras;google;m2repository | 58 | Google Repository
extras;google;market_apk_expansion | 1 | Google Play APK Expansion library
extras;google;market_licensing | 1 | Google Play Licensing Library
extras;google;simulators | 1 | Android Auto API Simulators
extras;google;webdriver | 2 | Google Web Driver
extras;m2repository;com;android;support;constraint;constraint-layout-solver;1.0.0 | 1 | Solver for ConstraintLayout 1.0.0
extras;m2repository;com;android;support;constraint;constraint-layout-solver;1.0.0-alpha4 | 1 | com.android.support.constraint:constraint-layout-solver:1.0.0-alpha4
extras;m2repository;com;android;support;constraint;constraint-layout-solver;1.0.0-alpha8 | 1 | Solver for ConstraintLayout 1.0.0-alpha8
extras;m2repository;com;android;support;constraint;constraint-layout-solver;1.0.0-beta1 | 1 | Solver for ConstraintLayout 1.0.0-beta1
extras;m2repository;com;android;support;constraint;constraint-layout-solver;1.0.0-beta2 | 1 | Solver for ConstraintLayout 1.0.0-beta2
extras;m2repository;com;android;support;constraint;constraint-layout-solver;1.0.0-beta3 | 1 | Solver for ConstraintLayout 1.0.0-beta3
extras;m2repository;com;android;support;constraint;constraint-layout-solver;1.0.0-beta4 | 1 | Solver for ConstraintLayout 1.0.0-beta4
extras;m2repository;com;android;support;constraint;constraint-layout-solver;1.0.0-beta5 | 1 | Solver for ConstraintLayout 1.0.0-beta5
extras;m2repository;com;android;support;constraint;constraint-layout-solver;1.0.1 | 1 | Solver for ConstraintLayout 1.0.1
extras;m2repository;com;android;support;constraint;constraint-layout-solver;1.0.2 | 1 | Solver for ConstraintLayout 1.0.2
extras;m2repository;com;android;support;constraint;constraint-layout;1.0.0 | 1 | ConstraintLayout for Android 1.0.0
extras;m2repository;com;android;support;constraint;constraint-layout;1.0.0-alpha4 | 1 | com.android.support.constraint:constraint-layout:1.0.0-alpha4
extras;m2repository;com;android;support;constraint;constraint-layout;1.0.0-alpha8 | 1 | ConstraintLayout for Android 1.0.0-alpha8
extras;m2repository;com;android;support;constraint;constraint-layout;1.0.0-beta1 | 1 | ConstraintLayout for Android 1.0.0-beta1
extras;m2repository;com;android;support;constraint;constraint-layout;1.0.0-beta2 | 1 | ConstraintLayout for Android 1.0.0-beta2
extras;m2repository;com;android;support;constraint;constraint-layout;1.0.0-beta3 | 1 | ConstraintLayout for Android 1.0.0-beta3
extras;m2repository;com;android;support;constraint;constraint-layout;1.0.0-beta4 | 1 | ConstraintLayout for Android 1.0.0-beta4
extras;m2repository;com;android;support;constraint;constraint-layout;1.0.0-beta5 | 1 | ConstraintLayout for Android 1.0.0-beta5
extras;m2repository;com;android;support;constraint;constraint-layout;1.0.1 | 1 | ConstraintLayout for Android 1.0.1
extras;m2repository;com;android;support;constraint;constraint-layout;1.0.2 | 1 | ConstraintLayout for Android 1.0.2
ndk-bundle | 21.3.6528147 | NDK
ndk;16.1.4479499 | 16.1.4479499 | NDK (Side by side) 16.1.4479499
ndk;17.2.4988734 | 17.2.4988734 | NDK (Side by side) 17.2.4988734
ndk;18.1.5063045 | 18.1.5063045 | NDK (Side by side) 18.1.5063045
ndk;19.2.5345600 | 19.2.5345600 | NDK (Side by side) 19.2.5345600
ndk;20.0.5594570 | 20.0.5594570 | NDK (Side by side) 20.0.5594570
ndk;20.1.5948944 | 20.1.5948944 | NDK (Side by side) 20.1.5948944
ndk;21.0.6113669 | 21.0.6113669 | NDK (Side by side) 21.0.6113669
ndk;21.1.6352462 | 21.1.6352462 | NDK (Side by side) 21.1.6352462
ndk;21.2.6472646 | 21.2.6472646 | NDK (Side by side) 21.2.6472646
ndk;21.3.6528147 | 21.3.6528147 | NDK (Side by side) 21.3.6528147
patcher;v4 | 1 | SDK Patch Applier v4
platform-tools | 30.0.4 | Android SDK Platform-Tools
platforms;android-10 | 2 | Android SDK Platform 10
platforms;android-11 | 2 | Android SDK Platform 11
platforms;android-12 | 3 | Android SDK Platform 12
platforms;android-13 | 1 | Android SDK Platform 13
platforms;android-14 | 4 | Android SDK Platform 14
platforms;android-15 | 5 | Android SDK Platform 15
platforms;android-16 | 5 | Android SDK Platform 16
platforms;android-17 | 3 | Android SDK Platform 17
platforms;android-18 | 3 | Android SDK Platform 18
platforms;android-19 | 4 | Android SDK Platform 19
platforms;android-20 | 2 | Android SDK Platform 20
platforms;android-21 | 2 | Android SDK Platform 21
platforms;android-22 | 2 | Android SDK Platform 22
platforms;android-23 | 3 | Android SDK Platform 23
platforms;android-24 | 2 | Android SDK Platform 24
platforms;android-25 | 3 | Android SDK Platform 25
platforms;android-26 | 2 | Android SDK Platform 26
platforms;android-27 | 3 | Android SDK Platform 27
platforms;android-28 | 6 | Android SDK Platform 28
platforms;android-29 | 5 | Android SDK Platform 29
platforms;android-30 | 3 | Android SDK Platform 30
platforms;android-7 | 3 | Android SDK Platform 7
platforms;android-8 | 3 | Android SDK Platform 8
platforms;android-9 | 2 | Android SDK Platform 9
skiaparser;1 | 4 | Layout Inspector image server for API 29-30
sources;android-15 | 2 | Sources for Android 15
sources;android-16 | 2 | Sources for Android 16
sources;android-17 | 1 | Sources for Android 17
sources;android-18 | 1 | Sources for Android 18
sources;android-19 | 2 | Sources for Android 19
sources;android-20 | 1 | Sources for Android 20
sources;android-21 | 1 | Sources for Android 21
sources;android-22 | 1 | Sources for Android 22
sources;android-23 | 1 | Sources for Android 23
sources;android-24 | 1 | Sources for Android 24
sources;android-25 | 1 | Sources for Android 25
sources;android-26 | 1 | Sources for Android 26
sources;android-27 | 1 | Sources for Android 27
sources;android-28 | 1 | Sources for Android 28
sources;android-29 | 1 | Sources for Android 29
sources;android-30 | 1 | Sources for Android 30
system-images;android-10;default;armeabi-v7a | 5 | ARM EABI v7a System Image
system-images;android-10;default;x86 | 5 | Intel x86 Atom System Image
system-images;android-10;google_apis;armeabi-v7a | 6 | Google APIs ARM EABI v7a System Image
system-images;android-10;google_apis;x86 | 6 | Google APIs Intel x86 Atom System Image
system-images;android-14;default;armeabi-v7a | 2 | ARM EABI v7a System Image
system-images;android-15;default;armeabi-v7a | 5 | ARM EABI v7a System Image
system-images;android-15;default;x86 | 5 | Intel x86 Atom System Image
system-images;android-15;google_apis;armeabi-v7a | 6 | Google APIs ARM EABI v7a System Image
system-images;android-15;google_apis;x86 | 6 | Google APIs Intel x86 Atom System Image
system-images;android-16;default;armeabi-v7a | 6 | ARM EABI v7a System Image
system-images;android-16;default;mips | 1 | MIPS System Image
system-images;android-16;default;x86 | 6 | Intel x86 Atom System Image
system-images;android-16;google_apis;armeabi-v7a | 6 | Google APIs ARM EABI v7a System Image
system-images;android-16;google_apis;x86 | 6 | Google APIs Intel x86 Atom System Image
system-images;android-17;default;armeabi-v7a | 6 | ARM EABI v7a System Image
system-images;android-17;default;mips | 1 | MIPS System Image
system-images;android-17;default;x86 | 4 | Intel x86 Atom System Image
system-images;android-17;google_apis;armeabi-v7a | 6 | Google APIs ARM EABI v7a System Image
system-images;android-17;google_apis;x86 | 6 | Google APIs Intel x86 Atom System Image
system-images;android-18;default;armeabi-v7a | 5 | ARM EABI v7a System Image
system-images;android-18;default;x86 | 4 | Intel x86 Atom System Image
system-images;android-18;google_apis;armeabi-v7a | 6 | Google APIs ARM EABI v7a System Image
system-images;android-18;google_apis;x86 | 6 | Google APIs Intel x86 Atom System Image
system-images;android-19;default;armeabi-v7a | 5 | ARM EABI v7a System Image
system-images;android-19;default;x86 | 6 | Intel x86 Atom System Image
system-images;android-19;google_apis;armeabi-v7a | 40 | Google APIs ARM EABI v7a System Image
system-images;android-19;google_apis;x86 | 40 | Google APIs Intel x86 Atom System Image
system-images;android-21;android-tv;armeabi-v7a | 3 | Android TV ARM EABI v7a System Image
system-images;android-21;android-tv;x86 | 3 | Android TV Intel x86 Atom System Image
system-images;android-21;default;armeabi-v7a | 4 | ARM EABI v7a System Image
system-images;android-21;default;x86 | 5 | Intel x86 Atom System Image
system-images;android-21;default;x86_64 | 5 | Intel x86 Atom_64 System Image
system-images;android-21;google_apis;armeabi-v7a | 32 | Google APIs ARM EABI v7a System Image
system-images;android-21;google_apis;x86 | 32 | Google APIs Intel x86 Atom System Image
system-images;android-21;google_apis;x86_64 | 32 | Google APIs Intel x86 Atom_64 System Image
system-images;android-22;android-tv;x86 | 3 | Android TV Intel x86 Atom System Image
system-images;android-22;default;armeabi-v7a | 2 | ARM EABI v7a System Image
system-images;android-22;default;x86 | 6 | Intel x86 Atom System Image
system-images;android-22;default;x86_64 | 6 | Intel x86 Atom_64 System Image
system-images;android-22;google_apis;armeabi-v7a | 26 | Google APIs ARM EABI v7a System Image
system-images;android-22;google_apis;x86 | 26 | Google APIs Intel x86 Atom System Image
system-images;android-22;google_apis;x86_64 | 26 | Google APIs Intel x86 Atom_64 System Image
system-images;android-23;android-tv;armeabi-v7a | 12 | Android TV ARM EABI v7a System Image
system-images;android-23;android-tv;x86 | 21 | Android TV Intel x86 Atom System Image
system-images;android-23;android-wear;armeabi-v7a | 6 | Android Wear ARM EABI v7a System Image
system-images;android-23;android-wear;x86 | 6 | Android Wear Intel x86 Atom System Image
system-images;android-23;default;armeabi-v7a | 6 | ARM EABI v7a System Image
system-images;android-23;default;x86 | 10 | Intel x86 Atom System Image
system-images;android-23;default;x86_64 | 10 | Intel x86 Atom_64 System Image
system-images;android-23;google_apis;armeabi-v7a | 33 | Google APIs ARM EABI v7a System Image
system-images;android-23;google_apis;x86 | 33 | Google APIs Intel x86 Atom System Image
system-images;android-23;google_apis;x86_64 | 33 | Google APIs Intel x86 Atom_64 System Image
system-images;android-24;android-tv;x86 | 22 | Android TV Intel x86 Atom System Image
system-images;android-24;default;arm64-v8a | 7 | ARM 64 v8a System Image
system-images;android-24;default;armeabi-v7a | 7 | ARM EABI v7a System Image
system-images;android-24;default;x86 | 8 | Intel x86 Atom System Image
system-images;android-24;default;x86_64 | 8 | Intel x86 Atom_64 System Image
system-images;android-24;google_apis;arm64-v8a | 27 | Google APIs ARM 64 v8a System Image
system-images;android-24;google_apis;x86 | 27 | Google APIs Intel x86 Atom System Image
system-images;android-24;google_apis;x86_64 | 27 | Google APIs Intel x86 Atom_64 System Image
system-images;android-24;google_apis_playstore;x86 | 19 | Google Play Intel x86 Atom System Image
system-images;android-25;android-tv;x86 | 16 | Android TV Intel x86 Atom System Image
system-images;android-25;android-wear-cn;armeabi-v7a | 4 | China version of Android Wear ARM EABI v7a System Image
system-images;android-25;android-wear-cn;x86 | 4 | China version of Android Wear Intel x86 Atom System Image
system-images;android-25;android-wear;armeabi-v7a | 3 | Android Wear ARM EABI v7a System Image
system-images;android-25;android-wear;x86 | 3 | Android Wear Intel x86 Atom System Image
system-images;android-25;default;x86 | 1 | Intel x86 Atom System Image
system-images;android-25;default;x86_64 | 1 | Intel x86 Atom_64 System Image
system-images;android-25;google_apis;arm64-v8a | 18 | Google APIs ARM 64 v8a System Image
system-images;android-25;google_apis;armeabi-v7a | 18 | Google APIs ARM EABI v7a System Image
system-images;android-25;google_apis;x86 | 18 | Google APIs Intel x86 Atom System Image
system-images;android-25;google_apis;x86_64 | 18 | Google APIs Intel x86 Atom_64 System Image
system-images;android-25;google_apis_playstore;x86 | 9 | Google Play Intel x86 Atom System Image
system-images;android-26;android-tv;x86 | 14 | Android TV Intel x86 Atom System Image
system-images;android-26;android-wear-cn;x86 | 4 | China version of Android Wear Intel x86 Atom System Image
system-images;android-26;android-wear;x86 | 4 | Android Wear Intel x86 Atom System Image
system-images;android-26;default;x86 | 1 | Intel x86 Atom System Image
system-images;android-26;default;x86_64 | 1 | Intel x86 Atom_64 System Image
system-images;android-26;google_apis;x86 | 16 | Google APIs Intel x86 Atom System Image
system-images;android-26;google_apis;x86_64 | 16 | Google APIs Intel x86 Atom_64 System Image
system-images;android-26;google_apis_playstore;x86 | 7 | Google Play Intel x86 Atom System Image
system-images;android-27;android-tv;x86 | 9 | Android TV Intel x86 Atom System Image
system-images;android-27;default;x86 | 1 | Intel x86 Atom System Image
system-images;android-27;default;x86_64 | 1 | Intel x86 Atom_64 System Image
system-images;android-27;google_apis;x86 | 11 | Google APIs Intel x86 Atom System Image
system-images;android-27;google_apis_playstore;x86 | 3 | Google Play Intel x86 Atom System Image
system-images;android-28;android-tv;x86 | 10 | Android TV Intel x86 Atom System Image
system-images;android-28;android-wear-cn;x86 | 4 | China version of Wear OS Intel x86 Atom System Image
system-images;android-28;android-wear;x86 | 4 | Wear OS Intel x86 Atom System Image
system-images;android-28;default;x86 | 4 | Intel x86 Atom System Image
system-images;android-28;default;x86_64 | 4 | Intel x86 Atom_64 System Image
system-images;android-28;google_apis;x86_64 | 11 | Google APIs Intel x86 Atom_64 System Image
system-images;android-28;google_apis_playstore;x86 | 9 | Google Play Intel x86 Atom System Image
system-images;android-28;google_apis_playstore;x86_64 | 8 | Google Play Intel x86 Atom_64 System Image
system-images;android-28;google_ndk;x86 | 10 | Google X86_ARM Intel x86 Atom System Image
system-images;android-29;android-tv;x86 | 3 | Android TV Intel x86 Atom System Image
system-images;android-29;default;x86 | 7 | Intel x86 Atom System Image
system-images;android-29;default;x86_64 | 7 | Intel x86 Atom_64 System Image
system-images;android-29;google_apis;x86 | 11 | Google APIs Intel x86 Atom System Image
system-images;android-29;google_apis;x86_64 | 11 | Google APIs Intel x86 Atom_64 System Image
system-images;android-29;google_apis_playstore;x86 | 8 | Google Play Intel x86 Atom System Image
system-images;android-29;google_apis_playstore;x86_64 | 8 | Google Play Intel x86 Atom_64 System Image
system-images;android-30;google_apis;x86 | 9 | Google APIs Intel x86 Atom System Image
system-images;android-30;google_apis;x86_64 | 9 | Google APIs Intel x86 Atom_64 System Image
system-images;android-30;google_apis_playstore;x86 | 9 | Google Play Intel x86 Atom System Image
system-images;android-30;google_apis_playstore;x86_64 | 9 | Google Play Intel x86 Atom_64 System Image
[root@localhost androidSdk]#
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
选择安装软件包 platform-tools build-tools;30.0.2 platforms;android-30 安装的cmd指令：sdkmanager --sdk_root=/usr/local/androidSdk/ "platform-tools" "platforms;android-30" "build-tools;30.0.2"（这三个安装包可以分开安装，这边是偷懒的写法，即一次性安装了三个） 在关心下 下载上述三个软件包之后的内容
[root@localhost androidSdk]# pwd
/usr/local/androidSdk
[root@localhost androidSdk]# ls -l
总用量 4
drwxr-xr-x. 3 root root 20 10月 24 00:09 build-tools
drwxr-xr-x. 4 root root 71 10月 23 23:48 cmdline-tools
drwxr-xr-x. 7 root root 4096 10月 24 00:08 emulator
drwxr-xr-x. 2 root root 33 10月 24 00:03 licenses
drwxr-xr-x. 3 root root 16 10月 24 00:06 patcher
drwxr-xr-x. 3 root root 24 10月 24 00:03 platforms
drwxr-xr-x. 5 root root 288 10月 24 00:03 platform-tools
drwxr-xr-x. 6 root root 205 10月 24 00:09 tools
[root@localhost androidSdk]#
1
2
3
4
5
6
7
8
9
10
11
12
13
2
3
4
5
6
7
8
9
10
11
12
13
下载了platform-tools之后，我们就可以把adb也一块配置上去了，即在 source /etc/profile中追加以下全局配置
export PATH=${SDK_HOME}/platform-tools:$PATH # 配置adb环境
1
记得 source /etc/profile
并检查是否下载成功以及配置是否生效
[root@localhost ~]# adb --version
Android Debug Bridge version 1.0.41
Version 30.0.4-6686687
Installed as /usr/local/androidSdk/platform-tools/adb
[root@localhost ~]#
1
2
3
4
5
2
3
4
5
至此，androidSdk即安装完成！
所有配置内容如下
export SDK_HOME=/usr/local/androidSdk
# 配置通过cmdline-tools中的sdkmanager下载下来的tools中的sdkmanager
# export PATH=${SDK_HOME}/tools/bin:$PATH
# 配置sdkmanager环境
export PATH=${SDK_HOME}/cmdline-tools/bin:$PATH
# 配置adb环境
export PATH=${SDK_HOME}/platform-tools:$PATH
1
2
3
4
5
6
7
2
3
4
5
6
7
参考环境变量
#sdk
#export ANDROID_HOME=/usr/local/android-sdk-linux
#export PATH=$ANDROID_HOME/tools:$PATH
#export PATH=$ANDROID_HOME/platforms:$PATH
export SDK_HOME=/usr/local/androidSdk
export PATH=${SDK_HOME}/cmdline-tools/bin:$PATH
#export PATH=${SDK_HOME}/platform-tools/:$PATH
#export PATH=${SDK_HOME}/tools/:$PATH
export PATH=${SDK_HOME}/tools/bin:$PATH
export FLUTTER_STORAGE_BASE_URL=https://storage.flutter-io.cn
export PUB_HOSTED_URL=https://pub.flutter-io.cn
##
export GRADLE_HOME=/data/gradle-7.3.3
export export PATH=${GRADLE_HOME}/bin:${PATH}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
2
3
4
5
6
7
8
9
10
11
12
13
14
其它问题

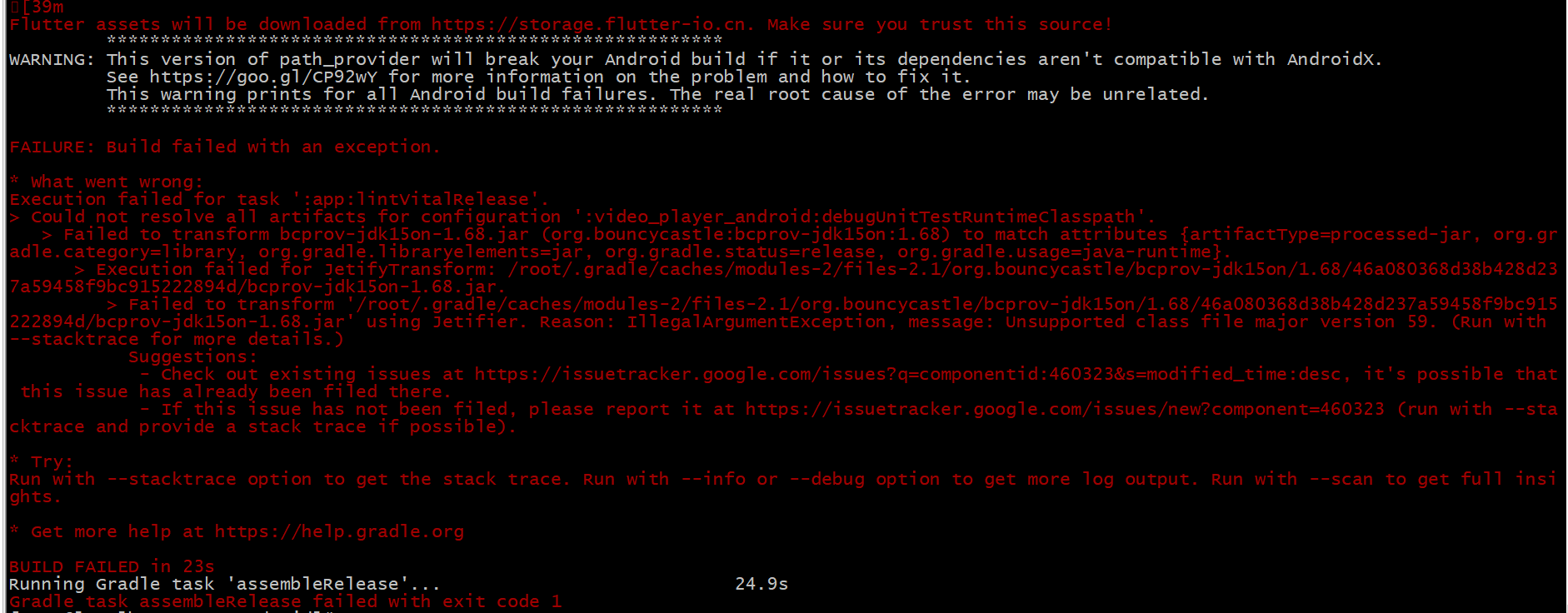

报错如下
解决方法：
在android目录下的gradle.properties添加android.jetifier.blacklist=bcprov-jdk15on
上次更新: 2023/04/21, 08:57:47
|
