制品库集成

# artifactory

.build:
  stage: build
  tags:
    - build
  script:
    - $BUILD_SHELL
    - ls

.deploy-artifact:
  stage: deploy-artifact
  tags:
    - build
  script:
    - curl -u${ARTIFACT_USER}:${ARTIFACT_PASSWD} -T ${ARTIFACT_PATH} "$ARTIFACTORY_URL/$ARTIFACTORY_NAME/$TARGET_FILE_PATH/$TARGET_ARTIFACT_NAME"

1
2
3
4
5
6
7
8
9
10
11
12
13
14

定义变量

template

include:
  - project: 'cidevops/cidevops-gitlabci-service'
    ref: master
    file: 'jobs/build.yml'
  - project: 'cidevops/cidevops-gitlabci-service'
    ref: master
    file: 'jobs/test.yml'
  - project: 'cidevops/cidevops-gitlabci-service'
    ref: master
    file: 'jobs/codeanalysis.yml'

variables:
  BUILD_SHELL: 'mvn clean package  -DskipTests'  ##构建命令
  CACHE_DIR: 'target/'
  TEST_SHELL : 'mvn test'                                   ##测试命令
  JUNIT_REPORT_PATH: 'target/surefire-reports/TEST-*.xml'   ##单元测试报告
  # 代码扫描
  SCANNER_HOME : "/usr/local/buildtools/sonar-scanner-3.2.0.1227-linux"
  SCAN_DIR : "src"
  ARTIFACT_PATH : 'target/*.jar'                            ##制品目录

  #上传制品库
  ARTIFACTORY_URL: "http://192.168.1.200:30082/artifactory"
  ARTIFACTORY_NAME: "cidevops"
  TARGET_FILE_PATH: "$CI_PROJECT_NAMESPACE/$CI_PROJECT_NAME/$CI_COMMIT_REF_NAME-$CI_COMMIT_SHORT_SHA-$CI_PIPELINE_ID"
  TARGET_ARTIFACT_NAME: "$CI_PROJECT_NAME-$CI_COMMIT_REF_NAME-$CI_COMMIT_SHORT_SHA-$CI_PIPELINE_ID.jar"



cache:
  paths:
    - ${CACHE_DIR}

stages:
  - build
  - test
  - parallel01


build:
  stage: build
  extends: .build
  rules:
    - when: on_success


test:
  stage: test
  extends: .test
  rules:
    - when: on_success


code_analysis:
  stage: parallel01
  extends: .codeanalysis-java

codeanalysis_mr:
  stage: parallel01
  extends: .codeanalysis-mr

deploy_artifact:
  stage: parallel01
  extends: .deploy-artifact

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64

下载制品

.down-artifact:
  stage: down-artifact
  tags:
    - build
  script:
    - curl -u${ARTIFACT_USER}:${ARTIFACT_PASSWD} -O "$ARTIFACTORY_URL/$ARTIFACTORY_NAME/$TARGET_FILE_PATH/$TARGET_ARTIFACT_NAME"
    - ls

1
2
3
4
5
6
7
8

template

down_artifact:
  stage: down_artifact
  extends: .down-artifact

1
2
3

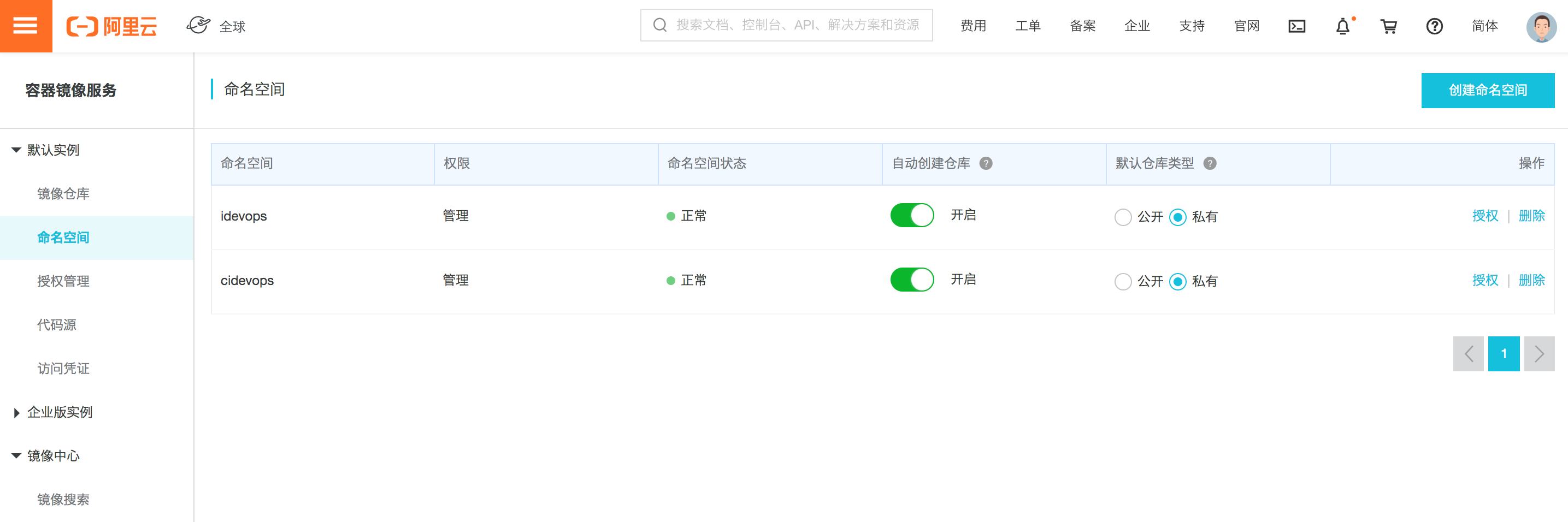

# 镜像仓库

https://cr.console.aliyun.com/cn-beijing/instances/repositories

.build-docker:
  stage: buildimage
  tags:
    - build
  script:
    - docker login -u $CI_REGISTRY_USER -p $CI_REGISTRY_PASSWD  $CI_REGISTRY
    - docker build -t ${IMAGE_NAME} -f ${DOCKER_FILE_PATH} .
    - docker push ${IMAGE_NAME}
    - docker rmi ${IMAGE_NAME}

1
2
3
4
5
6
7
8
9

include:
  - project: 'cidevops/cidevops-gitlabci-service'
    ref: master
    file: 'jobs/build.yml'
  - project: 'cidevops/cidevops-gitlabci-service'
    ref: master
    file: 'jobs/test.yml'
  - project: 'cidevops/cidevops-gitlabci-service'
    ref: master
    file: 'jobs/codeanalysis.yml'

variables:
  BUILD_SHELL: 'mvn clean package  -DskipTests'  ##构建命令
  CACHE_DIR: 'target/'
  TEST_SHELL : 'mvn test'                                   ##测试命令
  JUNIT_REPORT_PATH: 'target/surefire-reports/TEST-*.xml'   ##单元测试报告
  # 代码扫描
  SCANNER_HOME : "/usr/local/buildtools/sonar-scanner-3.2.0.1227-linux"
  SCAN_DIR : "src"
  ARTIFACT_PATH : 'target/*.jar'                            ##制品目录

  #上传制品库
  ARTIFACTORY_URL: "http://192.168.1.200:30082/artifactory"
  ARTIFACTORY_NAME: "cidevops"
  TARGET_FILE_PATH: "$CI_PROJECT_NAMESPACE/$CI_PROJECT_NAME/$CI_COMMIT_REF_NAME-$CI_COMMIT_SHORT_SHA-$CI_PIPELINE_ID"
  TARGET_ARTIFACT_NAME: "$CI_PROJECT_NAME-$CI_COMMIT_REF_NAME-$CI_COMMIT_SHORT_SHA-$CI_PIPELINE_ID.jar"

  #构建镜像
  CI_REGISTRY: 'registry.cn-beijing.aliyuncs.com'
  CI_REGISTRY_USER: '610556220zy'
  #CI_REGISTRY_PASSWD: 'xxxxxxxx.'
  IMAGE_NAME: "$CI_REGISTRY/$CI_PROJECT_PATH:$CI_COMMIT_REF_NAME-$CI_COMMIT_SHORT_SHA-$CI_PIPELINE_ID"
  DOCKER_FILE_PATH: "./Dockerfile"



cache:
  paths:
    - ${CACHE_DIR}

stages:
  - build
  - test
  - parallel01
  - down_artifact


build:
  stage: build
  extends: .build
  rules:
    - when: on_success


test:
  stage: test
  extends: .test
  rules:
    - when: on_success


code_analysis:
  stage: parallel01
  extends: .codeanalysis-java

codeanalysis_mr:
  stage: parallel01
  extends: .codeanalysis-mr

deploy_artifact:
  stage: parallel01
  extends: .deploy-artifact

down_artifact:
  stage: down_artifact
  extends: .down-artifact


build_image:
  stage: parallel01
  extends: .build-docker

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
