部署jenkins

Dockerfile文件展示

FROM docker.cnb.cool/zzppjj/docker-images/jenkins:jdk17
ADD ./apache-maven-3.9.0-bin.tar.gz /usr/local/
ADD ./sonar-scanner-cli-4.8.0.2856-linux.zip /usr/local/

USER root

WORKDIR /usr/local/
RUN unzip sonar-scanner-cli-4.8.0.2856-linux.zip
RUN mv sonar-scanner-4.8.0.2856-linux sonar-scanner-cli
RUN ln -s /usr/local/sonar-scanner-cli/bin/sonar-scanner /usr/bin/sonar-scanner

ENV MAVEN_HOME=/usr/local/apache-maven-3.9.0
ENV PATH=$JAVA_HOME/bin:$MAVEN_HOME/bin:$PATH

RUN echo "jenkins ALL=NOPASSWD: ALL" >> /etc/sudoers
USER jenkins

执行打包镜像

docker build -t docker.cnb.cool/zzppjj/docker-images/jenkins:v1 .

准备部署

docker compose文件

version: '3'
services:
  jenkins:
    image: docker.cnb.cool/zzppjj/docker-images/jenkins:v1
    container_name: jenkins
    restart: always
    ports:
      - '8000:8080'
      - '50000:50000'
    environment:
      JAVA_OPTS: -Duser.timezone=Asia/Shanghai
    volumes:
      - ./jenkins_home:/var/jenkins_home
      - /etc/localtime:/etc/localtime:ro
      - /var/run/docker.sock:/var/run/docker.sock
      - /usr/bin/docker:/usr/bin/docker
      - /usr/bin/kubectl:/usr/bin/kubectl

执行部署

docker compose up -d

jenkins 配置kubeconfig

打开config文件

cat /root/.kube/config

证书配置

echo certificate-authority-data | base64 -d > ca.crt
echo client-certificate-data | base64 -d > client.crt
echo client-key-data | base64 -d > client.key

根据这三个文件生成一个PKCS12格式的客户端证书文件

openssl pkcs12 -export -out cert.pfx -inkey client.key -in client.crt -certfile ca.crt

注意生成证书的时候，一定要填写密码，后面会用到

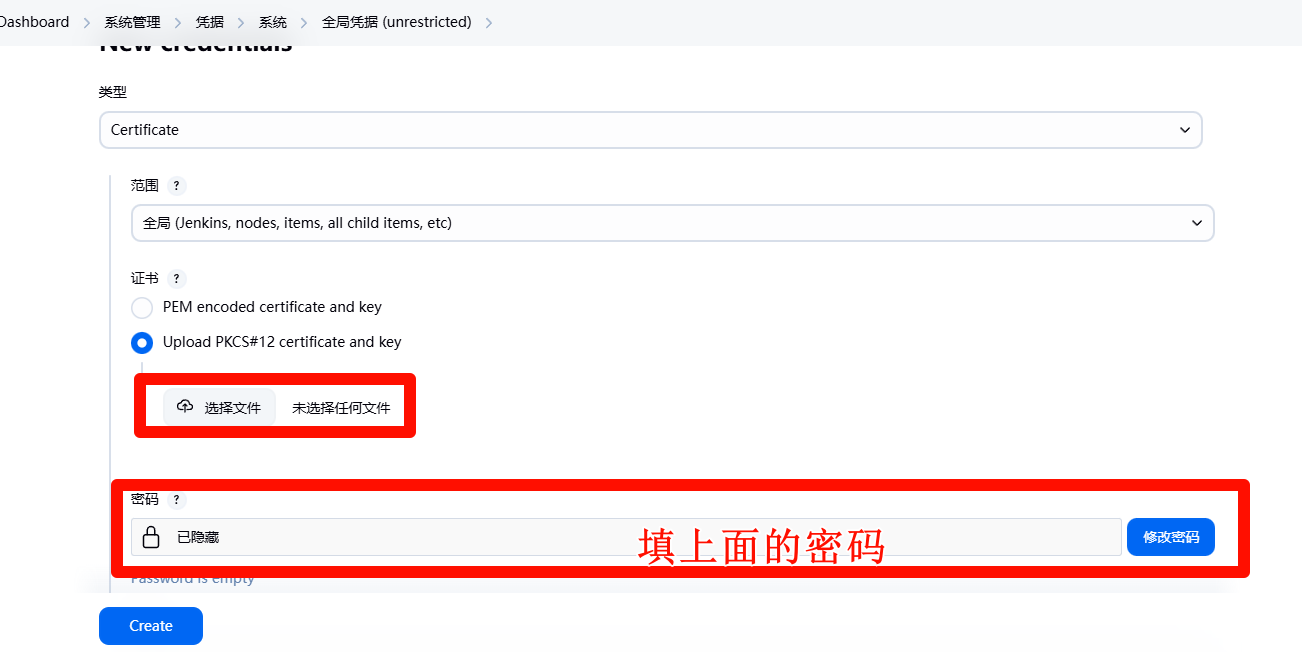

将生成的 cert.pfx 上传到凭证

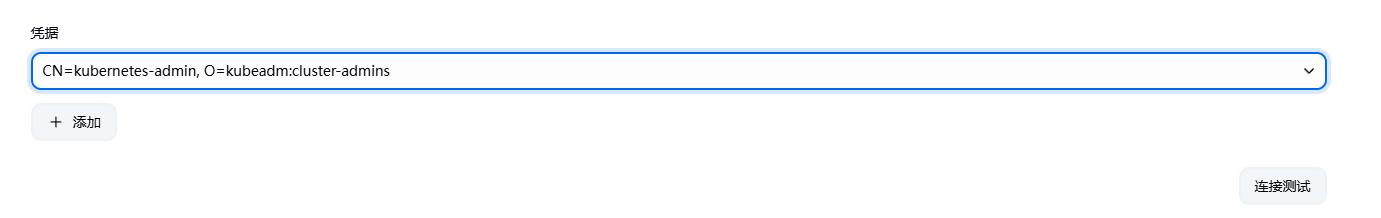

配置kubeconfig

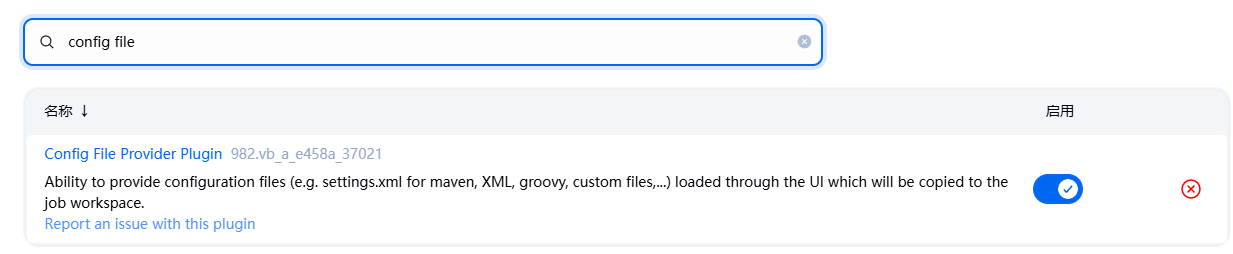

安装插件Config File Provider Plugin

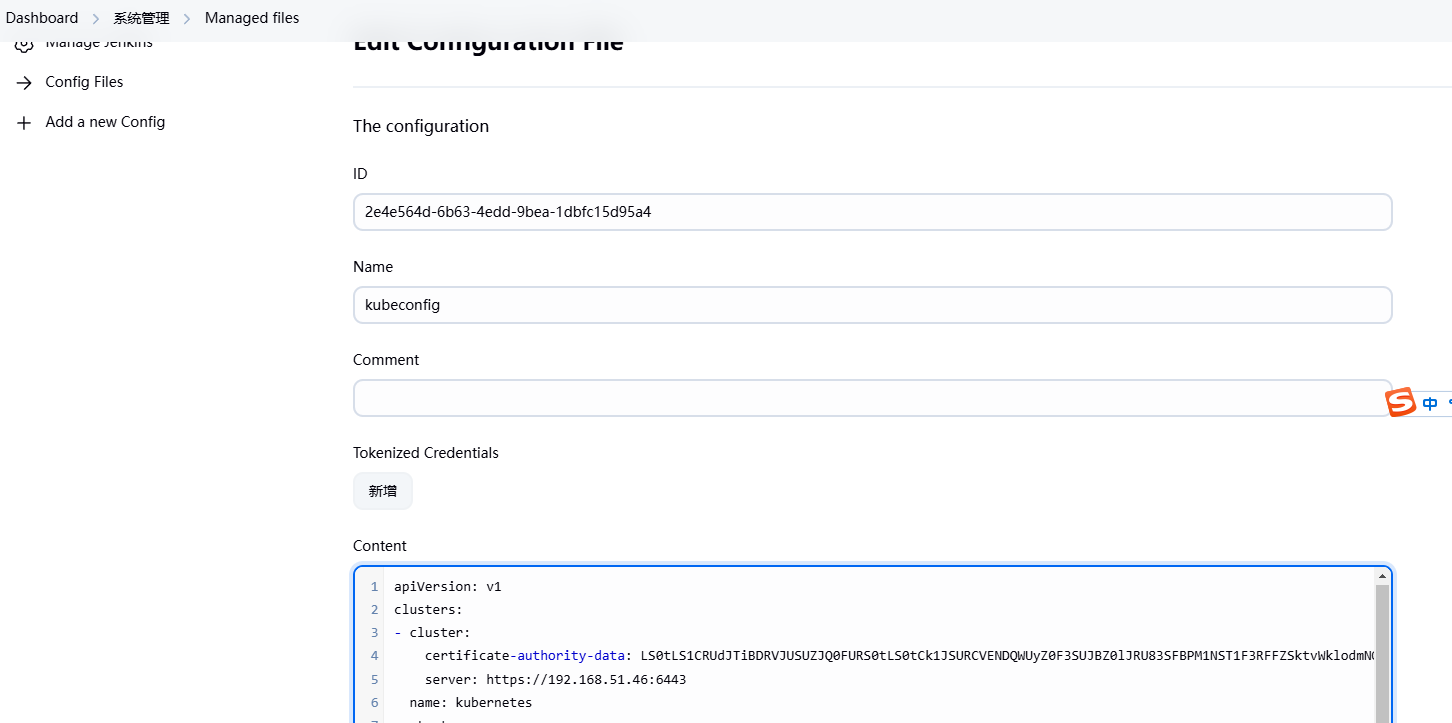

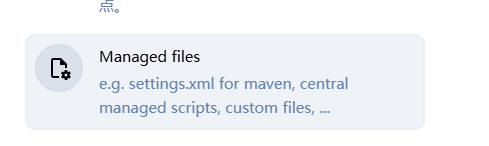

系统管理点击Managed files-Custom-file

pipeline使用例子

        stage('Deploy') {
            steps {
                script{
                  configFileProvider([configFile(fileId: '22bdbd6d-14f4-49c1-a924-5c844073ea69',
                  targetLocation: "admin.kubeconfig")]){
                      sh """
                      sed -i 's#IMAGE_NAME#${image_name}#' deployment.yaml
                      sed -i 's#REPLICAS#${ReplicaCount}#' deployment.yaml
                      kubectl apply -f deployment.yaml -n ${Namespace} --kubeconfig=admin.kubeconfig
                      """
                  }
                }
            }

部署go程序的jenkinsfile示例

pipeline {
  agent {
    label 'devops'
  }
  environment {
    REGISTRY = 'docker.cnb.cool'
    GIT_REPO_URL = '192.168.51.37:9080'
    DOCKERHUB_NAMESPACE = 'zzppjj/docker-images'
    APP_NAME = 'go-admin'
  }
  parameters {
    string(name: 'BRANCH_NAME', defaultValue: 'main', description: '请选择要发布的分支')
    string(name: 'TAG_NAME', defaultValue: 'latest', description: '标签名称，必须以 v 开头，例如：v1、v1.0.0')
  }

  stages {
    stage('clone code') {
      steps {

        git branch: 'main', credentialsId: 'git-user-pass', url: 'http://192.168.51.37:9080/root/xirang.git'


      }
    }


    stage('build & push') {
      steps {

        sh 'docker build -f Dockerfile -t $REGISTRY/$DOCKERHUB_NAMESPACE/$APP_NAME:$TAG_NAME .'
        withCredentials([usernamePassword(credentialsId : 'cnb-user-pass' ,passwordVariable : 'DOCKER_PASSWORD' ,usernameVariable : 'DOCKER_USERNAME' ,)]) {
        sh '''echo "$DOCKER_PASSWORD" | docker login $REGISTRY -u "$DOCKER_USERNAME" --password-stdin
docker push $REGISTRY/$DOCKERHUB_NAMESPACE/$APP_NAME:$TAG_NAME'''
        }
      }
    }

    stage('deploy to dev') {
      steps {
          script{
            configFileProvider([configFile(fileId: '2e4e564d-6b63-4edd-9bea-1dbfc15d95a4',
            targetLocation: "admin.kubeconfig")]){
                sh """
            sed -i\'\' "s#REGISTRY#$REGISTRY#" deploy/deployment.yaml
sed -i\'\' "s#DOCKERHUB_NAMESPACE#$DOCKERHUB_NAMESPACE#" deploy/deployment.yaml
sed -i\'\' "s#APP_NAME#$APP_NAME#" deploy/deployment.yaml
sed -i\'\' "s#BUILD_NUMBER#$TAG_NAME#" deploy/deployment.yaml
                kubectl apply -f deploy/deployment.yaml --kubeconfig=admin.kubeconfig
                """
            }
       }
     }
    }
 }
}
